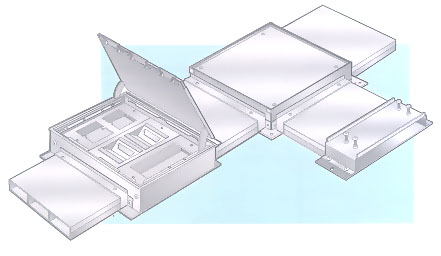

Underfloor Trunking

Underfloor trunking is used to supply power,telephone and data services within office accommodation with a minimum screed depth of 70mm, to accept a maximum system depth of 63mm.

Supplied in standard 2 metre lengths in two or three compartment options, each length is supplied complete with fixing clamp and connector.

A predetermined grid design incorporating the position of the trunking, junction and service boxes is required for direct fixing to the constructional slab prior to screed being laid. During screening both junction and service boxes may be fitted with disposable closure plates to prevent ingress to the system. Following the screed being laid, the closure plate is removed and the top assembly fitted. The top assembly is fully adjustable to allow for screed height adjustment.

Trunking
pre galvanised to BSEN10143:1993
Formerly BS2989

Finish:
Self colour

Service outlet box:
pre galvanised to BSEN10143:1993
Formerly BS2989

Finish:
Powder coated
gray - RAL 7015

 Non standard sizes,
profiles and finishes are
available to order

Underfloor trunking

Width mm Depth mm Thickness mm Two Compartment   Three Compartment
150 25 1.25 UT 11      -
225 25 1.25 UT 12     -
225 25 1.25  -   UT 13
300 38 1.25  - UT 14

Spare connector

Width mm Depth mm Thickness mm Two Compartment   Three Compartment
150 25 1.25 UT 21      -
225 25 1.25 UT 22     -
225 25 1.25  -   UT 22
300 38 1.25  - UT 23
Spare connector screws UT CFIX

Spare clamp

Width mm Depth mm Thickness mm Two Compartment   Three Compartment
150 25 1.25 UT 31      -
225 25 1.25 UT 32     -
225 25 1.25  -   UT 32
300 38 1.25  - UT 33



90 flat bend

Width mm Depth mm Thickness mm Two Compartment   Three Compartment
150 25 1.25 UT 41      -
225 25 1.25 UT 42     -
225 25 1.25  -   UT 43
300 38 1.25  - UT 44
90 riser bend

Width mm Depth mm Thickness mm Two Compartment   Three Compartment
150 25 1.25 UT 51      -
225 25 1.25 UT 52     -
225 25 1.25  -   UT 53
300 38 1.25  - UT 54


Base entry skirting unit

Width mm Depth mm Thickness mm Two Compartment   Three Compartment Skirting catalogue number
150 25 1.25 UT 61      - SA 12
225 25 1.25 UT 62     - SA 15
225 25 1.25  -   UT 63 SA 16
300 38 1.25  - UT 64 -
End stop

Width mm Depth mm Thickness mm Two Compartment   Three Compartment
150 25 1.25 UT 81      -
225 25 1.25 UT 82     -
225 25 1.25  -   UT 83
300 38 1.25  - UT 84



Junction box

Width mm Depth mm Thickness mm Two Compartment   Three Compartment Closure plate
150 25 1.25 UT 261      - UT 265
225 25 1.25 UT 262     - UT 265
225 25 1.25  -   UT 263 UT 265
300 38 1.25  - UT 264 UT 266
Note:
Junction boxes are supplied complete with fly overs, conduit/trunking collars, 6mm conver recess and 16mm of adjustment


Service outlet box

Width mm Depth mm Thickness mm Two Compartment   Three Compartment Closure plate
150 25 1.25 UT 926      - UT 9210
225 25 1.25 UT 929     - UT 9310
225 25 1.25  -   UT 939 UT 9310
300 38 1.25  - UT 940 UT 9311
Service outlet boxes are supplied without outlet plates - refer to page 27 for the full range.
Note:
Outlet plates FSB 010, FSB 020 andFSB 030 cannot be used with the underfloor service outlet box when power socket are fitted.
